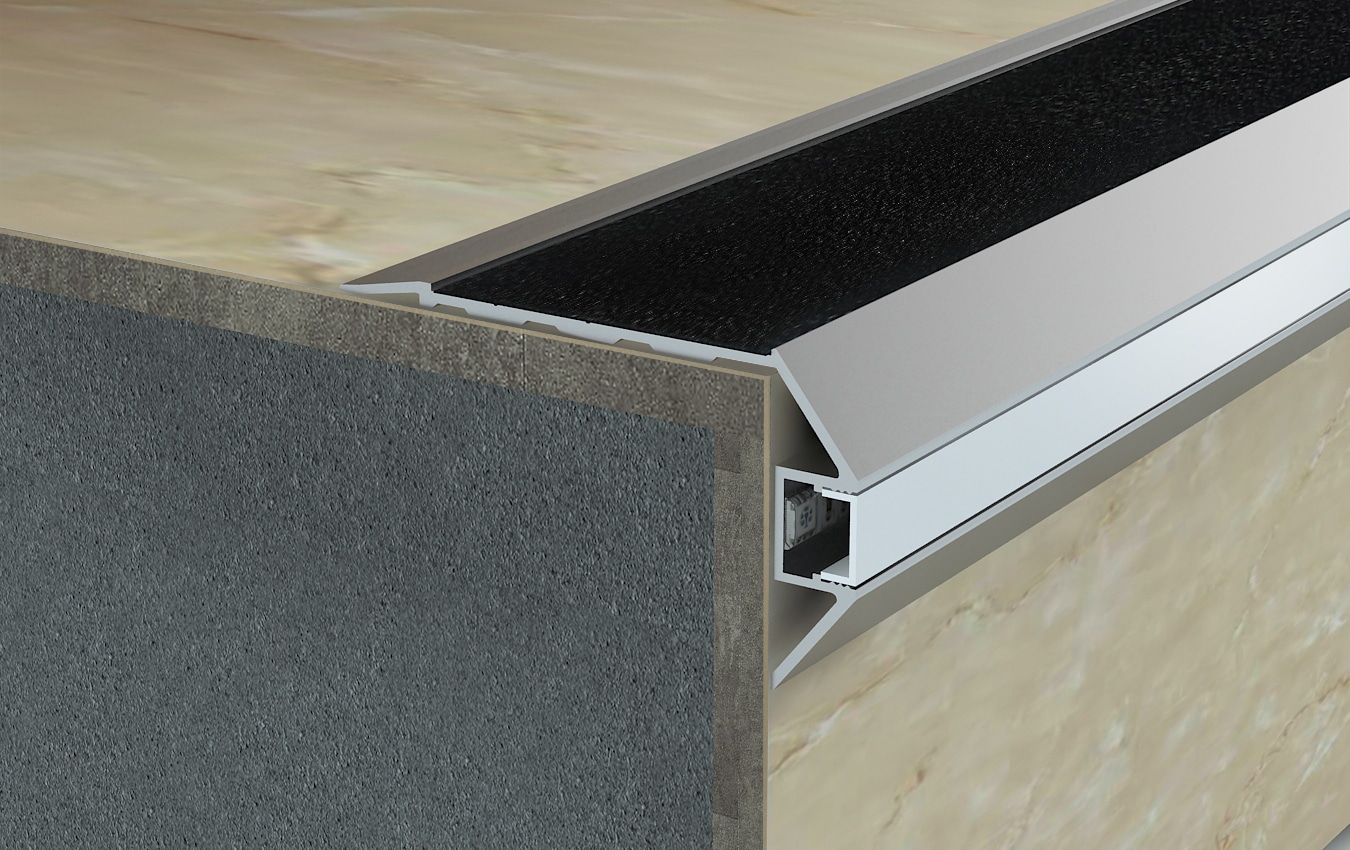

Lightning Stair Nose

Designed to emphasize and accentuate each individual stair, illuminating the riser below to create a stunning staircase. Supplied with frosted polycarbonate diffuser for optimum light dispersion. Accentuates each step by illuminating the riser below to create visually stunning, yet safely lit stairs. Includes frosted polycarbonate diffuser to ensure optimum levels of light dispersal.

SNLD7727

Model

Application

SNLD7727-ECL : Left End Cap

Model

SNLD7727-ECR : Right End Cap

Model

Download

Drawing AutocadData SheetDrawing PDF

SNLD7748

Model

Application

SNLD7748-EC : End Cap

Model

Download

Drawing AutocadData SheetDrawing PDF

Application

1) Stair Nose for any floor material with LED light Channel



Advantage

1. Designed to have channel for LED strip light to illuminating the riser each individual stair

2. Supply with proper diffuser for optimum light dispersion with fire-resistance rating according to American standard    ASNI/UL94-2001

3) Come with high quality Silicon Carbide Anti Slip according to Australian Standard    AS/NZ 4586 to increase user safety

4) Stair Edge Protection

5) Produced from high quality aluminium grade 6063 T5 according to European Norm      EN573-3, EN755-2 and American standard ASTM B221

Color

Matt Silver 01

Matt Silver 01

Length

size (mm)

Product

1000

2000

2500

2700

3000

SNLD7727

SNLD7748
